1591154 | LAPP

Telecommunications cable, 20-wire, A-2Y(L)2Y, 20 x 2 x 0.8 mm, black, PE, 1591154

Order No.: 33P3813
EAN: 4044774745954
MPN:
1591154
A-2Y(L)2Y...ST III BD 20x2x0,8
Series: A-2Y(L)2Y
LAPP
1591154 LAPP Telecommunication Cables
Image may differ
Print
Key Specification:
Number of cores 20
Cable cross-section 0.5 mm²
Inner diameter 0.8 mm
Cable structure 20 x 2 x 0.8 mm
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / mtr.)
12.5188 € *
Available: 0 mtr.
Leadtime: On Request **
Add to Cart
Total Price:
12.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
12.5188 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

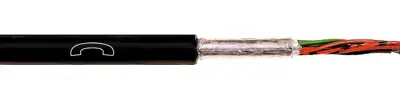

Telephone outdoor cable, 1591154, LAPP

The 1591154 is an outdoor telecommunication cable, specially layered jacket for use as directly and indirectly buried/ burial cable.

Features

  • Suitable for outdoor use
  • Interference signals
  • UV-resistant
Technical specifications
Core insulation material PE
Core colour sequence DIN VDE 0816
Number of cores 20
Outer diameter 17.3 mm
Colour black
Halogen free No
Inner diameter 0.8 mm
Cable structure 20 x 2 x 0.8 mm
Cable material copper, bright
Cable cross-section 0.5 mm²
Material PE
Temperature range (active) -20 °C to 50 °C
Temperature range (unmoved) -40 °C to 70 °C
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85444991
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
