61721871 | LAPP
Insulated wire end ferrule, 0.5 mm², 13.5 mm/8 mm long, DIN 46228/4, orange, 61721871
Order No.: 33P4183
EAN: 4044773207835
MPN:
61721871
ADERENDHÜLSEN AHI N 0,5/8 OG
Unit Price (€ / pc.)
0.0309 € *
Available: 500 pcs.
Leadtime: 1 Week **
Total Price:
0.03 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0309 €
10 pcs.
0.0274 €
50 pcs.
0.0238 €
100 pcs.
0.0214 €
500 pcs.
0.0178 €
*incl. VAT plus shipping costs
**Subject to prior sale

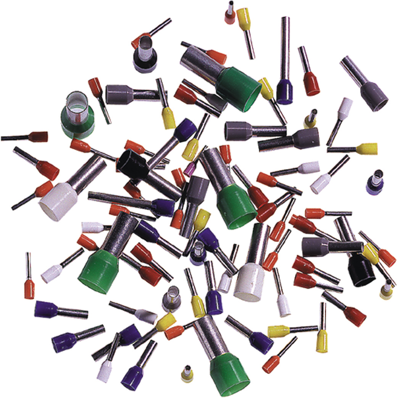

Conductor end sleeve, 61721871, LAPP
The 61721871 is a xonductor end sleeve with insulation for cabinet builders, according to DIN or German colour code, halogen-free. Funnel-shaped opening makes it easy to slip them onto the strands The conductor is permanently connected to the collar by crimping.
Applications
- Control cabinets and equipment wiring
- For cables with category 2,5 and 6 conductors
- Not suitable for solid conductors
Technical specifications
| Farbe | orange | |
| Isolationsmaterial | Polypropylen | |
| Isoliert | Yes | |
| Kontaktmaterial | Kupfer | |
| Länge | 13.5 mm | |
| Leiterquerschnitt | 0,5 mm² | |
| max. Temperatur | 105 °C | |
| Norm | DIN 46228/4 | |
| Pinlänge | 8 mm |
Download
Logistics
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
