61721950 | LAPP
Insulated wire end ferrule, 6.0 mm², 26 mm/18 mm long, DIN 46228/4, black, 61721950
Order No.: 33P4179
EAN: 4044773207620
MPN:
61721950
ADERENDHÜLSEN AHI L 6/18 BK
Unit Price (€ / pc.)
0.1166 € *
Available: 75 pcs.
Leadtime: On Request **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1166 €
10 pcs.
0.1000 €
50 pcs.
0.0893 €
100 pcs.
0.0774 €
500 pcs.
0.0714 €
*incl. VAT plus shipping costs
**Subject to prior sale

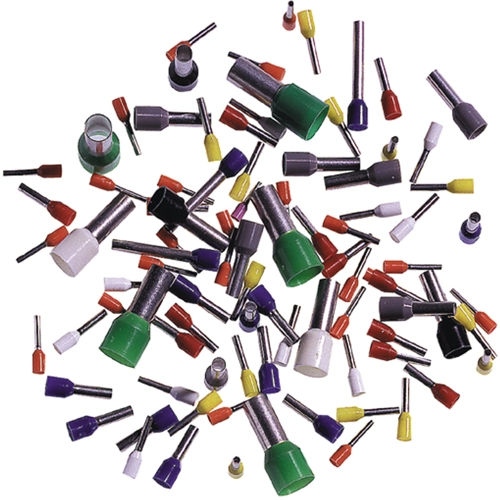

Conductor end sleeve, 61721950, LAPP
The 61721950 is a xonductor end sleeve with insulation for cabinet builders, according to DIN or German colour code, halogen-free. Funnel-shaped opening makes it easy to slip them onto the strands The conductor is permanently connected to the collar by crimping.
Applications
- Control cabinets and equipment wiring
- For cables with category 2,5 and 6 conductors
- Not suitable for solid conductors
Technical specifications
| Colour | black | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 26 mm | |
| Cable cross-section | 6.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 18 mm |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
