61746501 | LAPP

Insulated wire end ferrule, 1.5 mm², 19.5 mm/10 mm long, black, 61746501

Order No.: 33P4205
EAN: 4044773378757
MPN:
61746501
ADERENDHÜLSEN AHK 1,5/10 BK
LAPP

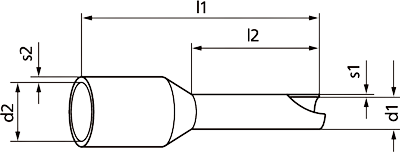

61746501 LAPP Wire-end Ferrules Image 1

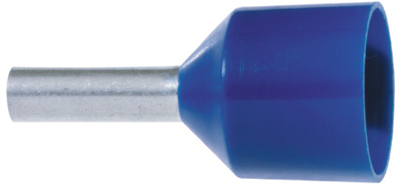

61746501 LAPP Wire-end Ferrules Image 2
Image may differ
Unit Price (€ / pc.)
0.1940 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.19 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1940 €
10 pcs.
0.1678 €
50 pcs.
0.1488 €
100 pcs.
0.1285 €
500 pcs.
0.1190 €
*incl. VAT plus shipping costs
**Subject to prior sale

Conductor end sleeve, 61746501, LAPP

The 61746501 is an insulated conductor end sleeves for short circuit cables up to 3 kV, for cables with thick insulation and greater wall thickness for higher loads.

Features

  • Halogen-free

Applications

  • Special conductor end sleeve model with large plastic collar for thick insulation cables
  • Suitable for unprotected connections on control and distribution panels, rail vehicles, solar systems, ignition cables
Technical specifications
Colour black
Material Insulation polypropylene
Isolated Yes
Contact material copper
Length 19.5 mm
Cable cross-section 1.5 mm²
max. operating temperature 105 °C
Pin lenght 10 mm
Logistics
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
