61801970 | LAPP
Insulated wire end ferrule, 95 mm², 44 mm/25 mm long, DIN 46228/4, red, 61801970
Order No.: 33P4195
EAN: 4044773207927
MPN:
61801970
ADERENDHÜLSEN AHI N 95/25 RD
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.62 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6184 €
10 pcs.
1.3923 €
50 pcs.
1.2376 €
100 pcs.
1.0829 €
500 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale

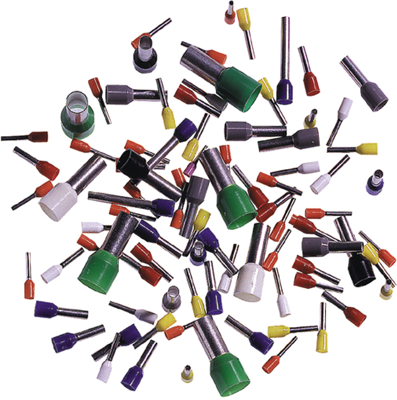

Conductor end sleeve, 61801970, LAPP
The 61801970 is a xonductor end sleeve with insulation for cabinet builders, according to DIN or German colour code, halogen-free. Funnel-shaped opening makes it easy to slip them onto the strands The conductor is permanently connected to the collar by crimping.
Applications
- Control cabinets and equipment wiring
- For cables with category 2,5 and 6 conductors
- Not suitable for solid conductors
Technical specifications
| Cable cross-section | 95 mm² | |
| Isolated | Yes | |
| Colour | rot | |
| Length | 44 mm | |
| Pin lenght | 25 mm | |
| Standard number | DIN 46228/4 | |
| Contact material | Kupfer | |
| Material Insulation | Polypropylen | |
| max. operating temperature | 105 °C |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
