61801999 | LAPP

Insulated wire end ferrule, 0.5 mm², 15 mm/8 mm long, white, 61801999

Order No.: 33P4196
EAN: 4044773207590
MPN:
61801999
ADERENDHÜLSEN AHI-TWIN 2X0,5 WH

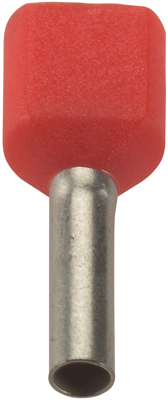

61801999 LAPP Wire-end Ferrules Image 1

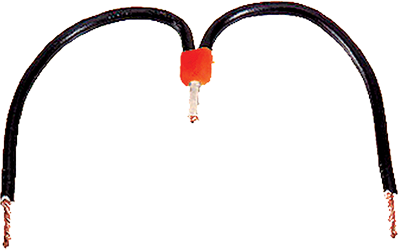

61801999 LAPP Wire-end Ferrules Image 2

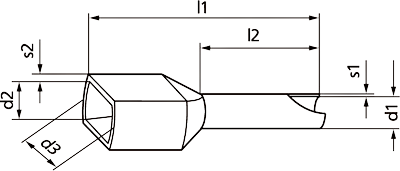

61801999 LAPP Wire-end Ferrules Image 3
Image may differ
Unit Price (€ / pc.)
0.0785 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0785 €
10 pcs.
0.0690 €
50 pcs.
0.0583 €
100 pcs.
0.0512 €
500 pcs.
0.0476 €
*incl. VAT plus shipping costs
**Subject to prior sale

Conductor end sleeve, 61801999, LAPP

The 61801999 is a twin insulated conductor end sleeve for two strand conductors. This product has special shape of plastic collar that enables simultaneous holding of two strand conductors. Correct crimping of two conductors in a TWIN conductor end sleeve achieves a proper electrical and mechanical connection.

Technical specifications
Farbe weiß
Isolationsmaterial Polypropylen
Isoliert Yes
Kontaktmaterial Kupfer
Länge 15 mm
Leiterquerschnitt 0,5 mm²
max. Temperatur 105 °C
Pinlänge 8 mm
Logistics
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
