61802010 | LAPP

Insulated wire end ferrule, 1.0 mm², 15 mm/8 mm long, red, 61802010

Order No.: 33P4198
EAN: 4044773207569
MPN:
61802010
ADERENDHÜLSEN AHI-TWIN 2X1 RD

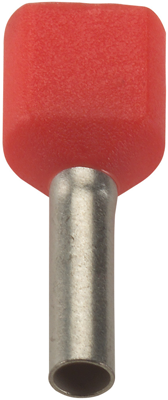

61802010 LAPP Wire-end Ferrules Image 1
61802010 LAPP Wire-end Ferrules Image 2
61802010 LAPP Wire-end Ferrules Image 3
Image may differ
Unit Price (€ / pc.)
0.0869 € *
Available: 100 pcs.
Leadtime: 1 Week **
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0869 €
10 pcs.
0.0750 €
50 pcs.
0.0666 €
100 pcs.
0.0559 €
500 pcs.
0.0524 €
*incl. VAT plus shipping costs
**Subject to prior sale

Conductor end sleeve, 61802010, LAPP

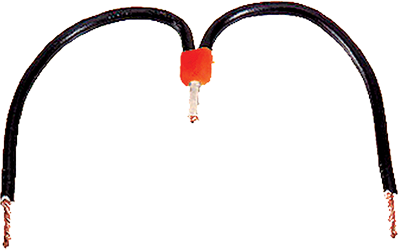

The 61802010 is a twin insulated conductor end sleeve for two strand conductors. This product has special shape of plastic collar that enables simultaneous holding of two strand conductors. Correct crimping of two conductors in a TWIN conductor end sleeve achieves a proper electrical and mechanical connection.

Technical specifications
Farbe rot
Isolationsmaterial Polypropylen
Isoliert Yes
Kontaktmaterial Kupfer
Länge 15 mm
Leiterquerschnitt 1,0 mm²
max. Temperatur 105 °C
Pinlänge 8 mm
Logistics
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
