61802032 | LAPP

Insulated wire end ferrule, 4.0 mm², 23 mm/12 mm long, gray, 61802032

Order No.: 33P4203
EAN: 4044773207514
MPN:
61802032
ADERENDHÜLSEN AHI-TWIN 2X4 GY

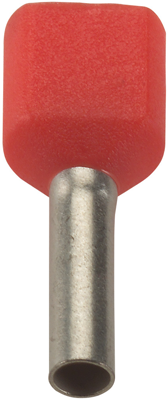

61802032 LAPP Wire-end Ferrules Image 1
61802032 LAPP Wire-end Ferrules Image 2
61802032 LAPP Wire-end Ferrules Image 3
Image may differ
Unit Price (€ / pc.)
0.2880 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2880 €
10 pcs.
0.2499 €
50 pcs.
0.2213 €
100 pcs.
0.1940 €
500 pcs.
0.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale

Conductor end sleeve, 61802032, LAPP

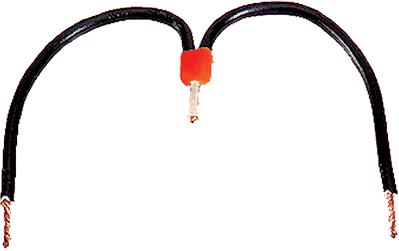

The 61802032 is a twin insulated conductor end sleeve for two strand conductors. This product has special shape of plastic collar that enables simultaneous holding of two strand conductors. Correct crimping of two conductors in a TWIN conductor end sleeve achieves a proper electrical and mechanical connection.

Technical specifications
Farbe grau
Isolationsmaterial Polypropylen
Isoliert Yes
Kontaktmaterial Kupfer
Länge 23 mm
Leiterquerschnitt 4,0 mm²
max. Temperatur 105 °C
Pinlänge 12 mm
Logistics
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
