61802067 | LAPP
Insulated wire end ferrule, 1.5 mm², 14 mm/8 mm long, DIN 46228/4, black, 61802067
Order No.: 33P4220
EAN: 4044773799200
MPN:
61802067
ADERENDHÜLSEN XL 1,5 BK 8
Unit Price (€ / pc.)
0.0369 € *
Available: 400 pcs.
Leadtime: On Request **
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0369 €
10 pcs.
0.0321 €
50 pcs.
0.0286 €
100 pcs.
0.0250 €
500 pcs.
0.0238 €
*incl. VAT plus shipping costs
**Subject to prior sale

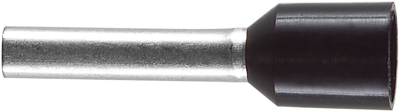

Conductor end sleeve, 61802067, LAPP
The 61802067 is an insulated conductor end sleeves for short circuit cables up to 3 kV, for cables with thick insulation and greater wall thickness for higher loads.
Features
- Halogen-free
Applications
- Special conductor end sleeve model with large plastic collar for thick insulation cables
- Suitable for unprotected connections on control and distribution panels, rail vehicles, solar systems, ignition cables
Technical specifications
| Colour | black | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | electrolytic copper | |
| Length | 14 mm | |
| Cable cross-section | 1.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
