LCR ELITE2 | LCR Research

LCR Tweezer Probe Meter, Overvoltage Protection

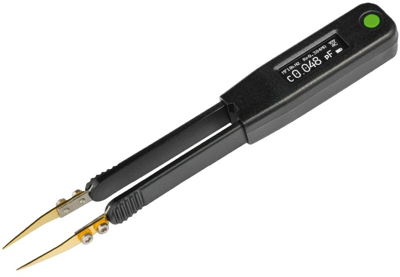

The LCR Elite2 is an LCR meter for measuring inductance (L), capacitance (C) and resistance (R) with high accuracy. It is small, lightweight and convenient to carry in mobile use. The gold-plated precision tips enable easy, reliable and pinpoint contacting of SMD components down to 0201. The shielded 4-wire measuring tip/sample ensures high measurement accuracy and reduces parasitic parameters to a minimum. The highly integrated, powerful hardware makes the LCR Elite2 an ideal tool for a wide range of applications in electronics laboratories, quality assurance, production, service, etc. The LCR Elite2 is an upgraded model and features overvoltage protection with Aegis technology, where overvoltage is automatically disconnected from the LCR meter and an "OVER VOLT" message is displayed.

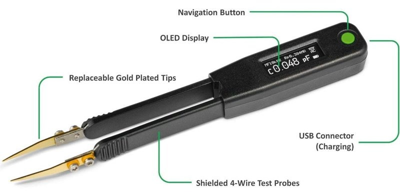

- Precise, gold-plated measuring tips for L, C, R measurement.
- Automatic or manual identification of components.
- Automatic or manual selection of test frequency.
- Automatic or manual switching mode.
- One-handed operation for quick, easy pickup of SMD components.
- Display convertible for left- or right-handed use.
- Overvoltage protection (between test peaks) up to ±48 VDC (or ±34 VAC).
