35135.000.000 | LEAR Corporation

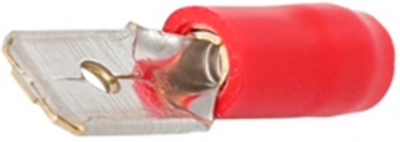

Faston plug, 6.3 x 0.8 mm, L 22 mm, insulated, straight, red, 0.5-1.0 mm², 35135.000.000
Order No.: 05F482
EAN: 4099889611823
MPN:
35135.000.000
Unit Price (€ / pc.)
0.3808 € *
Available: 2,710 pcs.
Leadtime: On Request **
Total Price:
7.62 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3808 €
50 pcs.
0.3332 €
100 pcs.
0.2880 €
500 pcs.
0.2428 €
*incl. VAT plus shipping costs
**Subject to prior sale
Tab terminals, insulated, type 35.
Made of tinned brass, insulated (PVC).
Mating width 6.3 mm, type 35.
Dimensions: l1 22, l2 8.0 mm.
Technical attributes (type, mating width x mating thickness, conductor cross-section, color): 35135, 6.3 x 0.8 mm, 0.5 to 1.0 mm², red
Technical specifications
| Connection | crimp connection | |
| Version | faston plug | |
| Design | straight | |
| Insulation colour | red | |
| Isolated | Yes | |
| Length | 22 mm | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | brass, tin-plated | |
| Plug width x plug thickness | 6.3 x 0.8 mm |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
