35040.000.000 | LEAR Corporation
Insulated flat plug sleeve, 6.3 x 0.8 mm, 0.5 to 1.0 mm², AWG 22 to 18, brass, tin-plated, red, 35040.000.000
Order No.: 05F536
EAN: 4099889618549
MPN:
35040.000.000
Unit Price (€ / pc.)
0.5236 € *
Available: 1,235 pcs.
Next delivery: 1,765 pcs. on 2025-01-31
Leadtime: 2 Weeks **
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
100 pcs.
0.4760 €
500 pcs.
0.4046 €
1000 pcs.
0.3451 €
5000 pcs.
0.2927 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle, insulated, type 35.
Made of tinned brass; Insulation: PVC.
Mating width 6.3 mm, type 350.

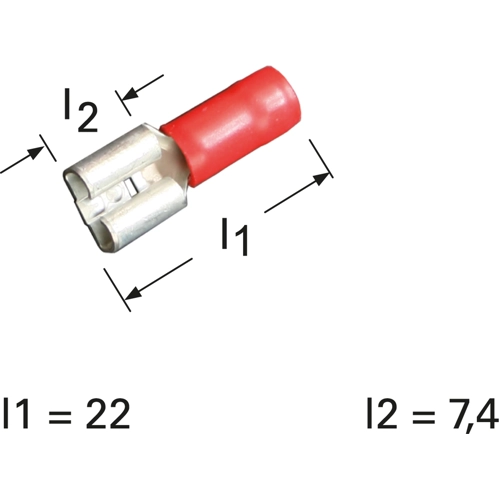

To DIN 46245 Part 3; Dimensions: l1 22, l2 7.4 mm.
Technical attributes (type, mating width x mating thickness, for conductor cross-section. color): 35040, 6.3 x 0.8 mm, 0.5 to 1.0 mm², red
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Insulation colour | red | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | Yes | |
| Length | 22 mm | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 46245 |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
