RX 8247 | LINDSTRÖM
ESD oblique cutter, 143 mm, 72 g, cut capacity (1 mm/–/–/–), RX 8247
Unit Price (€ / pc.)
167.6591 € *
Available: 5 pcs.
Available in 5 Days: 89 pcs.
Leadtime: On Request **
Total Price:
167.66 € *
Price list
Quantity
Price per unit*
1 pcs.
167.6591 €
3 pcs.
162.6135 €
10 pcs.
157.0562 €
25 pcs.
152.8436 €
*incl. VAT plus shipping costs
**Subject to prior sale

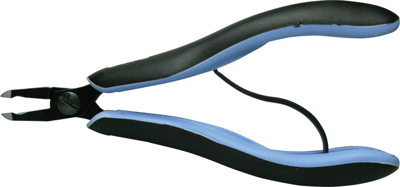

Oblique cutters, type Lindstrom Rx 8247.

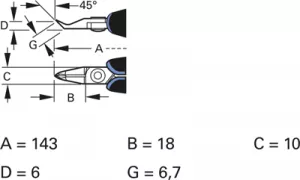

Long nose, 45° angle. The handle casing is protected against electrostatic charge, not conductive in the conductivity range and conductive in the dissipative range, however, non-insulated. Not suitable for life voltage electrical equipment. Practical operation of the tool is ensured with a resistance-reducing and adjustable spring opener; Cutting edge shape: without facet. Cutting capacity: copper wire 0.2 to 1.0 mm. Dimensions: A 143, B 18, C 10, D 6.0, G 6.7 mm.
Technical attributes (type, cutting edge shape, cutting capacity for copper wire): Rx 8247, oblique cutter
Technical specifications
| Version | Schrägvornschneider | |
| ESD protection | Yes | |
| Weight | 72 g | |
| Length | 143 mm | |
| Material | Stahl | |
| Cutting edge | mit Wate | |
| Cutting capacity (soft) | 1 mm | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
