LT1086CT-5#PBF | Linear Technology

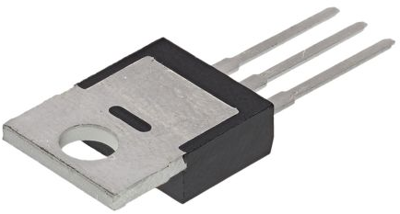

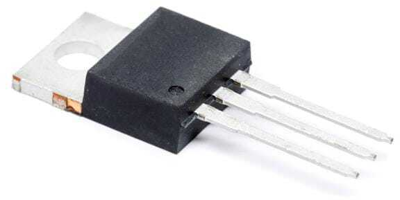

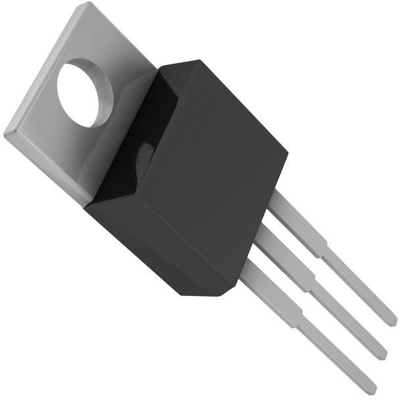

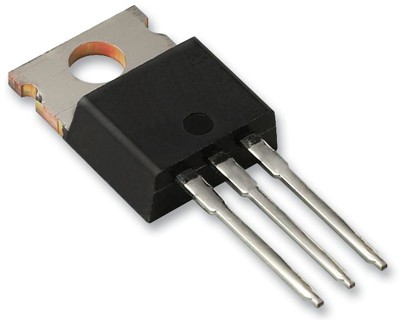

Voltage regulator, LT1086CT-5#PBF, LINEAR

The LT1086CT-5#PBF is designed to provide up to 1.5 A output current. All internal circuitry is designed to operate down to 1 V input-to-output differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at several operating points up to a maximum of 1.5 V at maximum output current. Dropout decreases at lower load currents. On-chip trimming adjusts the reference/ouput voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

Features

• Guaranteed dropout voltage at multiple current levels
• Line regulation: 0.015%
• 100% thermal limit functional test
• Load regulation: 0.1%

Applications

• High efficiency linear regulators
• Post regulators for switching supplies
• Constant current regulators
• Battery chargers
