LT1117CST-3.3#PBF | Linear Technology

Voltage regulator, 3.3 VDC, 800 mA, positive, SOT-223, LT1117CST-3.3#PBF

Order No.: 41S6218
EAN: 4099879098283
MPN:
LT1117CST-3.3#PBF
Series: LDO
Linear Technology

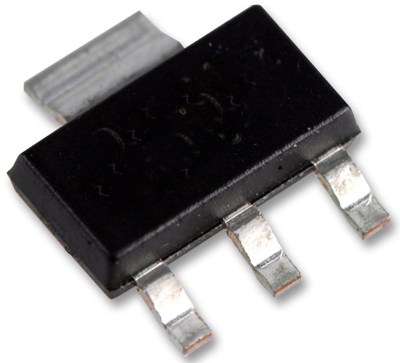

LT1117CST-3.3#PBF Linear Technology Linear Voltage Regulators (LDOs) Image 1

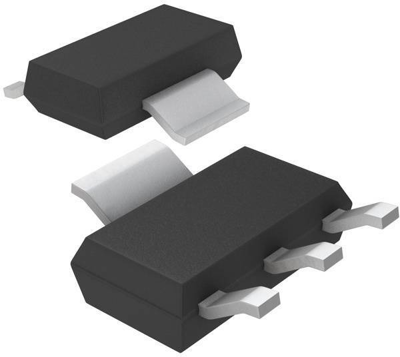

LT1117CST-3.3#PBF Linear Technology Linear Voltage Regulators (LDOs) Image 2

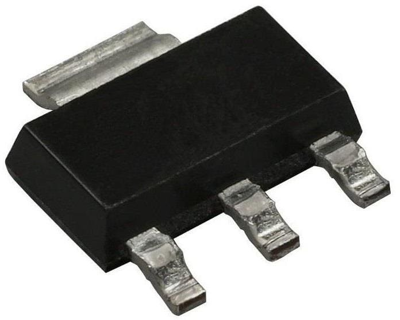

LT1117CST-3.3#PBF Linear Technology Linear Voltage Regulators (LDOs) Image 3
Image may differ
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
5.02 € *
*incl. VAT plus shipping costs
**Subject to prior sale
150 pcs.
5.0218 €

Voltage regulator, LT1117CST-3.3#PBF, LINEAR

The LT1117CST-3.3#PBF is a positive low dropout regulator designed to provide up to 800 mA of output current. All internal circuitry is designed to operate down to 1V input to output differential. Dropout voltage is guaranteed at a maximum of 1.2 V at 800 mA, decreasing at lower load currents. On chip trimming adjusts the reference/output voltage to within ±1%. Current limit is also trimmed in order to minimize the stress on both the regulator and the power source circuitry under overload conditions.

Features

  • Operates down to 1 V dropout
  • Guaranteed dropout voltage at multiple current levels
  • 0.2% line regulation max
  • 0.4% load regulation max

Applications

  • Active SCSI terminators
  • High efficiency linear regulators
  • Post regulator for switching supplies
  • Battery chargers
Technical specifications
Number of Regulators 1
Version fixed
Output voltage DC 3.3 VDC
Output current 800 mA
Input voltage AC 2.45-15 V
Enclosure SOT-223
max. operating temperature 125 °C
min. operating temperature 0 °C
Assembly SMD
Polarity positive
Logistics
Country of origin US
Customs tariff number 85423390
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
