0287040.L | Littelfuse

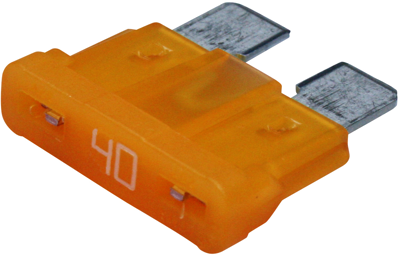

Automotive flat fuse, 40 A, 32 V, orange, (L x W x H) 19.1 x 5.1 x 18.8 mm, 0287040.L
Unit Price (€ / pc.)
0.6426 € *
Available: 750 pcs.
Leadtime: 23 Weeks **
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.4522 €
100 pcs.
0.3808 €
500 pcs.
0.3332 €
1000 pcs.
0.3035 €
*incl. VAT plus shipping costs
**Subject to prior sale
Blade fuse, 028707.5PXCN, Littelfuse
Developed by Littelfuse for the automotive industry, the ATOF® fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks.
Technical Data
- Current: 40 A
- Color: orange
- Voltage rating: 32 V

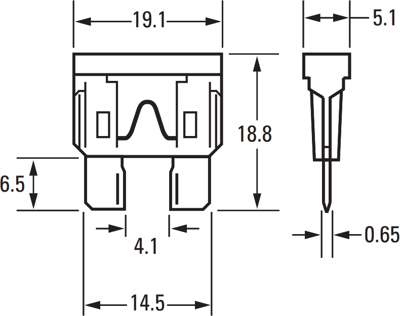

- Dimensions (L/H/W): 19.1/18.8/5.1 mm
Technical specifications
| Version | automotive flat fuse | |
| Breaking capacity | 1 kA | |
| Width | 5.1 mm | |
| Colour | orange | |
| Height | 18.8 mm | |
| Length | 19.1 mm | |
| Rated voltage | 32 V | |
| Rated current | 40 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
