0297003.WXNV | Littelfuse

Automotive flat fuse, 3 A, 32 V, purple, (L x W x H) 10.9 x 3.8 x 16 mm, 0297003.WXNV

Order No.: 46G3453
EAN: 4099889123678
MPN:
0297003.WXNV
Series: MINI 32V

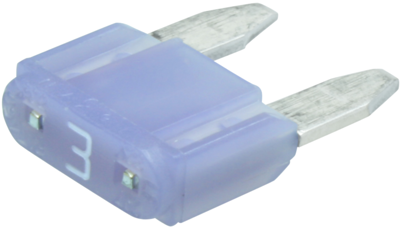

0297003.WXNV Littelfuse Automotive Blade Fuses Image 1
0297003.WXNV Littelfuse Automotive Blade Fuses Image 2
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available: 2,973 pcs.
Leadtime: 22 Weeks **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.2713 €
100 pcs.
0.2321 €
500 pcs.
0.2011 €
1000 pcs.
0.1833 €
*incl. VAT plus shipping costs
**Subject to prior sale

Mini blade fuse, 0297003.WXNV, Littelfuse

The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.

Technical Data

  • Current: 3 A
  • Color: violet
  • Voltage rating: 32 V

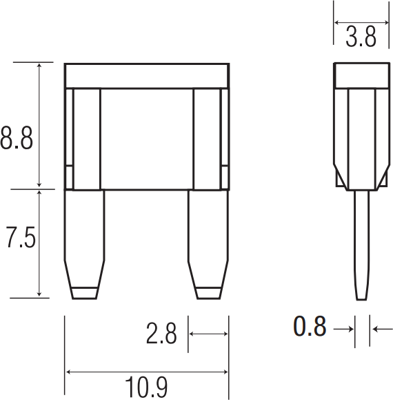

  • Dimensions (L/H/W): 10.9/8.8/3.8 mm
Technical specifications
Version KFZ-Flachsicherung
Breaking capacity 1 kA
Width 3.8 mm
Colour violett
Height 16 mm
Length 10.9 mm
Rated voltage 32 V
Rated current 3 A
Logistics
Country of origin MX
Customs tariff number 85361010
Original Packaging Beutel mit 3.000 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
