0297010.H | Littelfuse
Automotive flat fuse, 10 A, 32 V, red, (L x W x H) 10.9 x 3.8 x 8.8 mm, 0297010.H
Unit Price (€ / pc.)
0.3927 € *
Available: 200 pcs.
Leadtime: 23 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3332 €
100 pcs.
0.2820 €
*incl. VAT plus shipping costs
**Subject to prior sale
Mini blade fuse, 0297010.H, Littelfuse
The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.
Technical Data
- Current: 10 A
- Color: red
- Voltage rating: 32 V

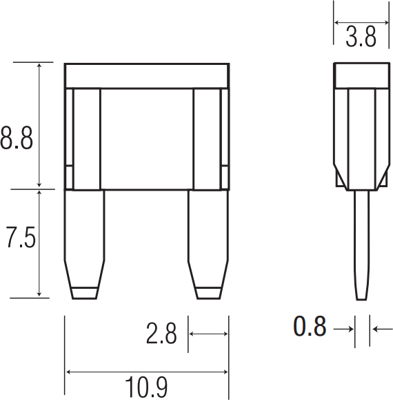

- Dimensions (L/H/W): 10.9/8.8/3.8 mm
Technical specifications
| Version | automotive flat fuse | |
| Breaking capacity | 1 kA | |
| Width | 3.8 mm | |
| Colour | red | |
| Height | 8.8 mm | |
| Length | 10.9 mm | |
| Rated voltage | 32 V | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
