0298500.ZXH | Littelfuse
Screw lock, 500 A, 32 V, brown, (L x W x H) 68.58 x 19.05 x 9.9 mm, 0298500.ZXH
Unit Price (€ / pc.)
8.0325 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Fuse, 0298500.ZXH, Littelfuse

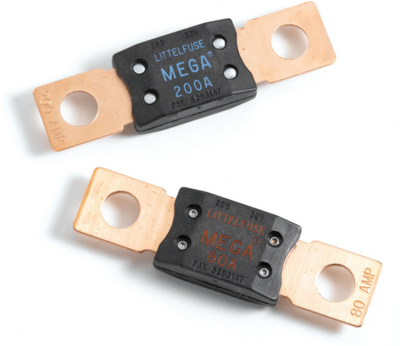

The MEGA® Fuse is designed for high current circuit protection up to 500A with “Diffusion Pill Technology.” The MEGA® Fuse also provides time delay characteristics. Designed and patented by Littelfuse, the MEGA® Fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
FUSE 32V S/B MEGA 500A RIVETED
Technical specifications
| Version | screw lock | |
| Breaking capacity | 2 kA | |
| Width | 19.05 mm | |
| Colour | brown | |
| Height | 9.9 mm | |
| Length | 68.58 mm | |
| Rated voltage | 32 V | |
| Rated current | 500 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
