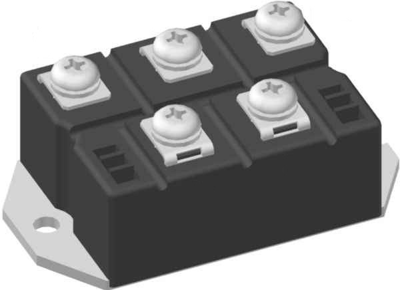

Littelfuse 3-phase bridge rectifier, 1800 V (RRM), 200 A, PWS-E, VUO160-18NO7
Order No.: 74P1159
EAN: 4099891780241
MPN:
VUO160-18NO7
Unit Price (€ / pc.)
73.3873 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Rectifier bridge, VUO160-18NO7, LITTELFUSE
A rectifier bridge with an isolation voltage of 3000 V, improved temperature and power cycling, very low forward voltage drop and leakage current, and a copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Easy to mount with two screws
- Advanced power cycling
Applications
- Diode for main rectification
- For three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Ausführung | 3-phase | |
| Gehäuse | PWS-E | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | Schraubmontage | |
| Nennstrom | 200 A | |
| Spannung V RRM (Spitzensperrspannung) | 1800 V |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
