05710007L | Littelfuse

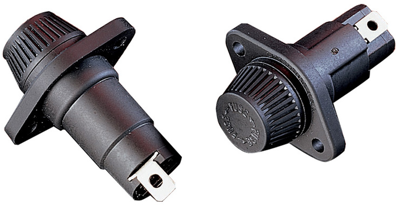

Fuse holder, 10.3 x 38.1 mm, 30 A, 600 V, 05710007L
Unit Price (€ / pc.)
28.6909 € *
Available: 0 pcs.
Available in 4 Days: 6 pcs.
Leadtime: 9 Weeks **
Fuse holder, 05710007L, Littelfuse
Panel mount fuse holders are for Midget-Style and Class CC fuses. Class CC fuses have a rejection feature on one end cap, which mates with the rejection feature of Littelfuse Class CC fuses holders to prevent the installation of fuses with lower voltage ratings or interrupting ratings. Watertight version must be front panel mounted.
Features
- 600 V
- 30 A for Class CC and Midget fuses
- 4000 V Minimum
Technical specifications
| Connection | Steckanschluss | |
| Version of the cap | Fingergrip | |
| Version | geschlossen | |
| For Fuse | 10,3 x 38,1 mm | |
| Rated voltage | 600 V | |
| Rated current | 30 A |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369095 |
| Original Packaging | Bulk mit 1 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
