82000000005 | Littelfuse

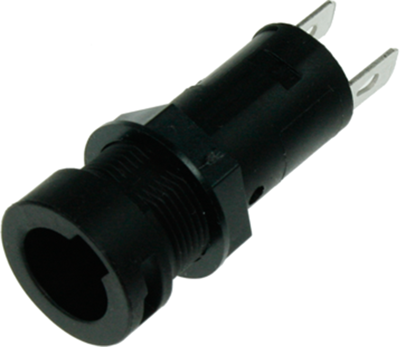

Fuse holder, 5 x 20 mm, 6 A, 250 V, central Mounting, 82000000005
Unit Price (€ / pc.)
3.4391 € *
Available: 3,340 pcs.
Available in 4 Days: 300 pcs.
Leadtime: 19 Weeks **
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
2.8798 €
100 pcs.
2.4514 €
500 pcs.
2.1420 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fuse holders for 5 x 20 mm G fuses
Type: 820

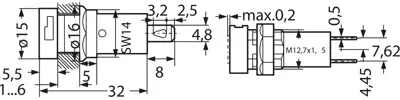

compliant with IEC 60127-6 and UL 512, with central fastener M12.7 x 1.5. Connections: 4.8 x 0.5 mm solder plug pins, tinned, solderable. Insulators: thermoplastic (polyamide PA 6.6) socket, compliant with UL 94 VDC0, black. Rated load: 6.3 A/250 V. Test voltage: 4.0 kV/50 Hz (1.0 minute, dry run). Degree of protection to IEC 60529: IP 40. Certifications: VDE, Semko, UL, CSA.
Technical specifications
| Connection | Steckanschluss | |
| Version | geschlossen | |
| Type of mounting | Zentralbefestigung | |
| Touch protection | PC2 | |
| Installation diameter | 12.7 mm | |
| For Fuse | 5 x 20 mm | |
| Rated voltage | 250 V | |
| Rated current | 6 A | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
