CG2300LSTR | Littelfuse
2 electrode arrester, SMD, 300 V, 20 kA, ceramic, CG2300LSTR
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: 16 Weeks **

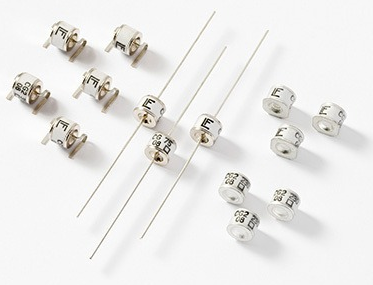

Gas discharge tube, CG2300LSTR, LITTELFUSE
The highly reliable GDT provides a high degree of surge protection in a small size, ideal for board-level circuit protection. GDTs function as switches that dissipate a minimum amount of energy and therefore handle currents that far surpass other types of transient voltage protection. Their gas-filled, rugged ceramic metal construction makes them well suited to adverse environments. The CG2 is ideal for protecting equipment where higher voltage limits and holdover voltages are necessary.
Features
- Rugged ceramic-metal construction
- Low capacitance
- RoHS and lead-free compliant
Applications
- Communication lines and equipment
- CATV equipment
- Test equipment
- Data lines
- Power supplies
- Instrumentation circuits
- Medical electronics
- ADSL equipment
- Telecom SLIC protection
Technical specifications
| discharge current | 20 kA | |
| Activation voltage | 300 V | |
| Number of arresters | 2 | |
| Design | SMD | |
| Shell Material | ceramic |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85363090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
