CG31.5 | Littelfuse
2 electrode arrester, axial, 1500 V, 10 kA, ceramic, CG31.5
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Available in 4 Days: 2,400 pcs.
Leadtime: 16 Weeks **

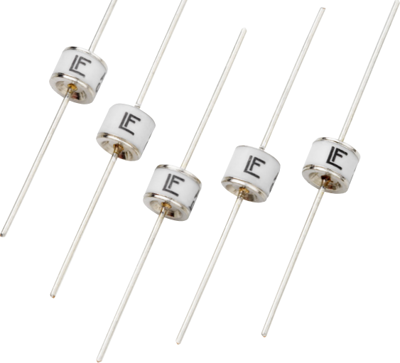

Gas discharge tube, CG31.5, LITTELFUSE
The two-electrode line protectors provide a high degree of surge protection in AC line applications. The CG3 two-electrode high-voltage device is designed for surge protection and high isolation applications, and for applications for which bias voltages or signal levels of several hundred volts are normally present.
Features
- Rugged ceramic-metal construction
- Low capacitance
Applications
- CRT terminals
- CATV equipment
- Antennas
- Power supplies
- Medical electronics
Technical specifications
| discharge current | 10 kA | |
| Activation voltage | 1500 V | |
| Number of arresters | 2 | |
| Design | axial | |
| Shell Material | ceramic |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85354000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
