IXDI614YI | Littelfuse

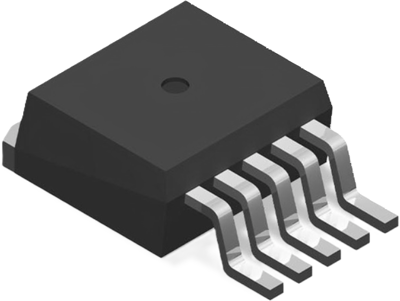

Low-side ultrafast MOSFET driver, TO-263, Littelfuse IXDI614YI
Unit Price (€ / pc.)
4.165 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Gate driver, IXDI614YI, Littelfuse
The IXDI614YI is a high-speed gate driver that is especially well suited for driving the latest IXYS MOSFETs and IGBTs. Each output can source and sink 14 A of peak current while producing voltage rise and fall times of less than 30 ns. Internal circuitry eliminates cross-conduction and current "shoot-through" making the driver virtually immune to latch up.
Features
- Matched Rise and Fall Times
- Low Propagation Delay Time
- Low Output Impedance
Applications
- Switch-Mode Power Supplies
- DC-DC Converters
- Motor Controllers
- Pulse Transformer Driver
- Class-D Switching Amplifiers
Technical specifications
| Number of channels | 1 | |
| Version | Low-Side | |
| Enclosure | TO-263 | |
| Assembly | SMD |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
