55140-3H-02-A | Littelfuse
Hall effect sensor, 55140-3H-02-AAH
Unit Price (€ / pc.)
8.1753 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Hall effect sensor, 55140-3H-02-A, LITTELFUSE

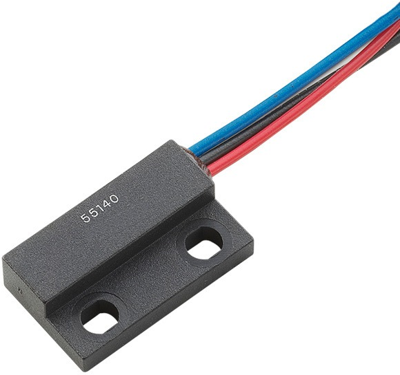

A small flange mounting hall effect sensor with a digital output and a three-wire version. Its case design enables screw or adhesive mounting.
Features
- Magnetically operated position sensor
- Reverse/over voltage protection
- Built in temperature compensation
- Long life up to 20 billion operations
- Operates in static or dynamic magnetic field
- RoHS compliant
Applications
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Angle sensing
- Magnetic encoders
Technical specifications
| Version | hall effect sensor | |
| Output current | 25 mA | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Assembly | flange mounting | |
| Voltage | 2.7-24 V |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85051190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
