55140-3M-02-A | Littelfuse
Hall effect sensor, 55140-3M-02-AAH
Unit Price (€ / pc.)
7.9373 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

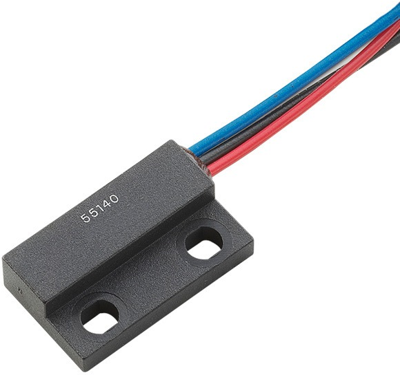

Hall effect sensor, 55140-3M-02-A, LITTELFUSE
A small flange mounting hall effect sensor with a digital output and a three-wire version. Its case design enables screw or adhesive mounting.
Features
- Magnetically operated position sensor
- Reverse/over voltage protection
- Built in temperature compensation
- Long life up to 20 billion operations
- Operates in static or dynamic magnetic field
- RoHS compliant
Applications
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Angle sensing
- Magnetic encoders
Technical specifications
| Ausführung | Halleffekt-Sensor | |
| Ausgangsstrom | 25 mA | |
| max. Temperatur | 100 °C | |
| min. Temperatur | -40 °C | |
| Montage | Flanschmontage | |
| Spannung | 2,7-24 V |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
