IXA33IF1200HB | Littelfuse

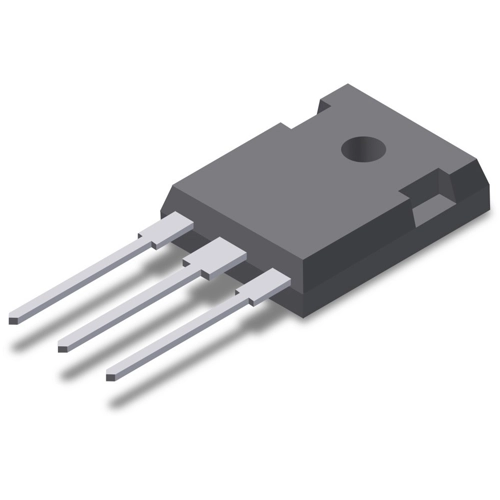

IGBT, 1200 V, 58 A, TO-247, Littelfuse IXA33IF1200HB
Order No.: 74P0706
EAN: 4099891775711
MPN:
IXA33IF1200HB
Unit Price (€ / pc.)
10.5672 € *
Available: 0 pcs.
Leadtime: 61 Weeks **
IGBT, IXA33IF1200HB, Littelfuse
Manufactured through the state-of-the-art GenX IGBT process and an extreme-light punch through design platform, this device features high-current handling capabilities, high-speed switching abilities, low total energy loss, and low current fall times. It has a positive collector-to-emitter voltage temperature coefficient, making it possible for designers to use multiple devices in parallel to meet high current requirements.
Features
- Easy paralleling due to the positive temperature coefficient of the on-state voltage
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supply
- Air-conditioning systems
- Welding equipment
- Switched-mode and resonant-mode power supplies
- Inductive heating, cookers
- Pumps, fans
Technical specifications
| Ausführung | Einfach | |
| Gehäuse | TO-247 | |
| max. Spannung | 1200 V | |
| max. Strom | 58 A | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 3 J | |
| Schaltverlust b. Einschalten Eon typ. | 2.5 J | |
| Verlustleistung VA (AC) | 250 W |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
