IXA4I1200UC-TRL | Littelfuse

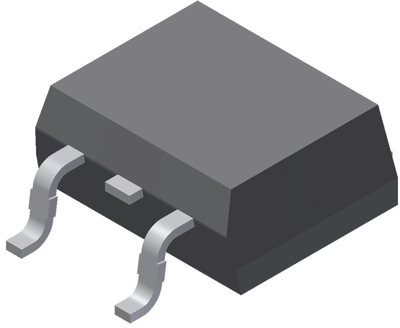

IGBT, 1200 V, 9 A, TO-252, Littelfuse IXA4I1200UC-TRL
Order No.: 74P0709
EAN: 4099891775742
MPN:
IXA4I1200UC-TRL
Unit Price (€ / pc.)
2.4871 € *
Available: 0 pcs.
Leadtime: 50 Weeks **
IGBT, IXA4I1200UC-TRL, Littelfuse
Manufactured through the state-of-the-art GenX IGBT process and an extreme-light punch through design platform, this device features high-current handling capabilities, high-speed switching abilities, low total energy loss, and low current fall times. It has a positive collector-to-emitter voltage temperature coefficient, making it possible for designers to use multiple devices in parallel to meet high current requirements.
Features
- Easy paralleling due to the positive temperature coefficient of the on-state voltage
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supply
- Air-conditioning systems
- Welding equipment
- Switched-mode and resonant-mode power supplies
- Inductive heating, cookers
- Pumps, fans
Technical specifications
| Ausführung | Einfach | |
| Gehäuse | TO-252 | |
| max. Spannung | 1200 V | |
| max. Strom | 9 A | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 0.3 J | |
| Schaltverlust b. Einschalten Eon typ. | 0.4 J | |
| Verlustleistung VA (AC) | 45 W |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
