IXGH20N120A3 | Littelfuse

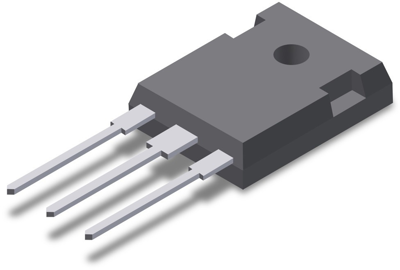

Name: IGBT, 1200 V, 20 A, TO-247, Littelfuse IXGH20N120A3
Brand: Littelfuse
SKU: 74P0758
Price: 5.94 EUR
Availability: OutOfStock

IGBT, 1200 V, 20 A, TO-247, Littelfuse IXGH20N120A3

Order No.: 74P0758

EAN: 4099891776237

MPN:

IXGH20N120A3

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247

Version single

max. Voltage 1200 V

Max. current 20 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.9381 € *

Available: 0 pcs.

Leadtime: 52 Weeks **

Add to Cart

Total Price:

5.94 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

IGBT, IXGH20N120A3, LITTELFUSE

Ultra-low Vsat PT IGBT for up to 3 kHz switching with an international standard package, optimized for low conduction losses, and with advantages such as high power density, and low gate drive requirements.

Applications

Power inverters
UPS
Motor drives
SMPS
PFC circuits
Battery chargers
Welding machines
Lamp ballasts
Inrush current protection circuits

Technical specifications

	Version	single
	Enclosure	TO-247
	max. Voltage	1200 V
	Max. current	20 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Saturation voltage	2.5 V
	Switching loss b. switch off Eoff typ.	10.1 J
	Switching loss at switch-on Eon typ.	5.53 J
	Power dissipation	180 W

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	KR
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
