IXGH25N160 | Littelfuse

Name: IGBT, 1600 V, 75 A, TO-247, Littelfuse IXGH25N160
Brand: Littelfuse
SKU: 74P0761
Price: 10.75 EUR
Availability: OutOfStock

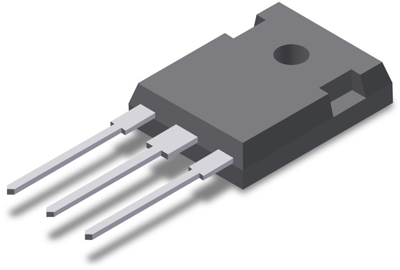

IGBT, 1600 V, 75 A, TO-247, Littelfuse IXGH25N160

Order No.: 74P0761

EAN: 4099891776268

MPN:

IXGH25N160

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247

Version single

max. Voltage 1600 V

Max. current 75 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.7457 € *

Available: 0 pcs.

Leadtime: 47 Weeks **

Add to Cart

Total Price:

10.75 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

IGBT, IXGH25N160, LITTELFUSE

A high voltage IGBT with high peak current capability, and advantages such as high power density, ease of mounting with one screw, and being suitable for surface mounting.

Features

Low saturation voltage
MOS gate turn-on - drive simplicity
Rugged NPT structure
International standard package
Molding epoxies meet UL 94 V-0 flammability classification

Applications

Capacitor discharge and pulser circuits
AC motor speed control
DC servo and robot drives
DC choppers
Uninterruptible power supplies (UPS)
Switch-mode and resonant-mode power supplies

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	KR
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 20 variations

*incl. VAT plus shipping costs
