IXGH25N250 | Littelfuse

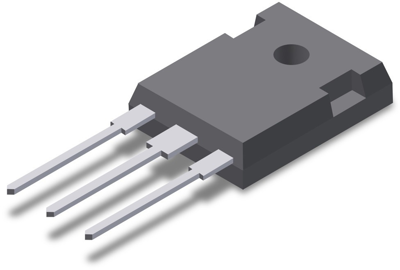

Name: IGBT, 2500 V, 60 A, TO-247, Littelfuse IXGH25N250
Brand: Littelfuse
SKU: 74P0762
Price: 51.72 EUR
Availability: OutOfStock

IGBT, 2500 V, 60 A, TO-247, Littelfuse IXGH25N250

Order No.: 74P0762

EAN: 4099891776275

MPN:

IXGH25N250

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247

Version single

max. Voltage 2500 V

Max. current 60 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

51.7174 € *

Available: 0 pcs.

Leadtime: 47 Weeks **

Add to Cart

Total Price:

51.72 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

IGBT, IXGH25N250, LITTELFUSE

A high voltage IGBT with high peak current capability, an electrically isolated tab, low saturation voltage and rugged NPT structure.

Features

MOS gate turn-on - drive simplicity
Molding epoxies meet UL 94 V-0 flammability classification
High power density
Suitable for surface mounting
Easy to mount with 1 screw, (isolated mounting screw hole)

Applications

Capacitor discharge
Pulse circuits

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	PH
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 20 variations

*incl. VAT plus shipping costs
