IXGH28N60B3D1 | Littelfuse

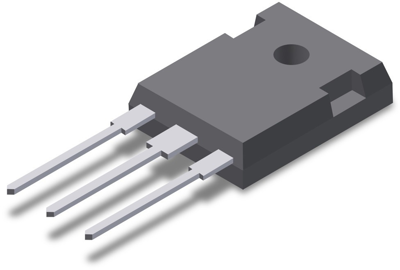

Name: IGBT, 600 V, 28 A, TO-247U, Littelfuse IXGH28N60B3D1
Brand: Littelfuse
SKU: 74P0763
Price: 5.45 EUR
Availability: OutOfStock

IGBT, 600 V, 28 A, TO-247U, Littelfuse IXGH28N60B3D1

Order No.: 74P0763

EAN: 4099891776282

MPN:

IXGH28N60B3D1

Image may differ

Key Specification:

Assembly THT

Enclosure TO-247U

Version single

max. Voltage 600 V

Max. current 28 A

Show 20 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

5.4502 € *

Available: 0 pcs.

Leadtime: 41 Weeks **

Add to Cart

Total Price:

5.45 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

IGBT, IXGH28N60B3D1, LITTELFUSE

An IGBT with high current handling capability, square RBSOA, and MOS gate turn-on drive simplicity.

Applications

PFC circuits
Uninterruptible power supplies (UPS)
Switch-mode and resonant-mode power supplies
AC motor speed control
DC servo and robot drives
DC choppers

Technical specifications

	Version	single
	Enclosure	TO-247U
	max. Voltage	600 V
	Max. current	28 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Saturation voltage	1.8 V
	Switching loss b. switch off Eoff typ.	1 J
	Switching loss at switch-on Eon typ.	0.6 J
	Power dissipation	190 W

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	KR
Customs tariff number	85411000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 20 variations
