IXGK400N30A3 | Littelfuse

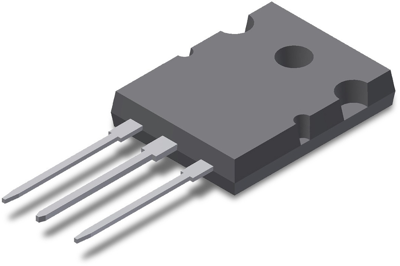

IGBT, 300 V, 400 A, TO-264, Littelfuse IXGK400N30A3
Order No.: 74P0785
EAN: 4099891776503
MPN:
IXGK400N30A3
Unit Price (€ / pc.)
32.0110 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
IGBT, IXGK400N30A3, LITTELFUSE
Ultra-low Vsat PT IGBT for up to 10 kHz switching, optimized for low conduction losses, and with advantages such as high power density, and low gate drive requirements.
Features
- High avalanche capability
- International standard package
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
- Inrush current protection circuits
Technical specifications
| Version | single | |
| Enclosure | TO-264 | |
| max. Voltage | 300 V | |
| Max. current | 400 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 1.15 V | |
| Power dissipation | 1000 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
