IXGL75N250 | Littelfuse

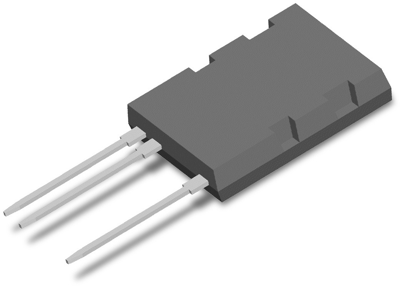

IGBT, 2500 V, 65 A, TO-264I, Littelfuse IXGL75N250
Order No.: 74P0791
EAN: 4099891776565
MPN:
IXGL75N250
Unit Price (€ / pc.)
138.5398 € *
Available: 0 pcs.
Leadtime: 47 Weeks **
IGBT, IXGL75N250, LITTELFUSE
A high voltage IGBT with very high peak current capability, an electrically isolated tab, and a low saturation voltage.
Features
- MOS gate turn-on
- ISOPLUS i5-PAK
- Isolated back surface
- Enlarged creepage torwards heat-sink
- Enlarged creepage between high voltage pins
- Application friendly pinout
- High reliability
- Industry standard outline
- UL registered
Applications
- Capacitor discharge
- Pulse circuits
Technical specifications
| Version | single | |
| Enclosure | TO-264I | |
| max. Voltage | 2500 V | |
| Max. current | 65 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 2.9 V | |
| Power dissipation | 430 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
