IXGN400N60A3 | Littelfuse

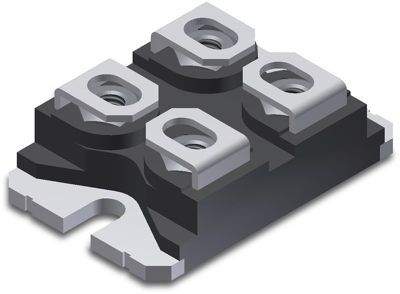

IGBT, 600 V, 400 A, SOT-227, Littelfuse IXGN400N60A3
Order No.: 74P0796
EAN: 4099891776619
MPN:
IXGN400N60A3
Unit Price (€ / pc.)
63.0105 € *
Available: 0 pcs.
Leadtime: 41 Weeks **
IGBT, IXGN400N60A3, LITTELFUSE
Ultra-low Vsat PT IGBT for up to 5 kHz switching with an international standard package, optimized for low conduction losses, and with advantages such as high power density, and low gate drive requirements.
Features
- Isolation voltage 3000 V
- Square RBSOA
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
- Inrush current protection circuits
Technical specifications
| Version | single | |
| Enclosure | SOT-227 | |
| max. Voltage | 600 V | |
| Max. current | 400 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | chassis mounting | |
| Saturation voltage | 1.25 V | |
| Power dissipation | 830 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
