IXGR32N170AH1 | Littelfuse

IGBT, 1700 V, 26 A, TO-247IU, Littelfuse IXGR32N170AH1

Order No.: 74P0805
EAN: 4099891776701
MPN:
IXGR32N170AH1
Littelfuse
IXGR32N170AH1 Littelfuse IGBTs

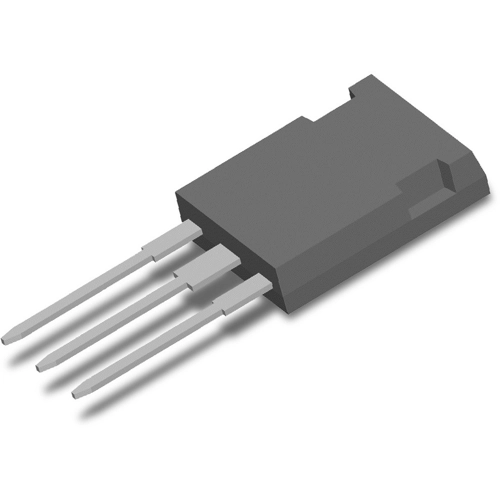

Image may differ
Unit Price (€ / pc.)
25.3351 € *
Available: 0 pcs.
Leadtime: 47 Weeks **
Total Price:
25.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
25.3351 €

IGBT, IXGR32N170AH1, LITTELFUSE

A high voltage IGBT with high current handling capability, an electrically isolated tab, and a rugged NPT structure.

Features

  • MOS gate turn-on - drive simplicity
  • Molding epoxies meet UL 94 V-0 flammability classification

Applications

  • Capacitor discharge and pulser circuits
  • AC motor speed control
  • DC servo and robot drives
  • DC choppers
  • Uninterruptible power supplies (UPS)
  • Switch-mode and resonant-mode power supplies
Technical specifications
Version single
Enclosure TO-247IU
max. Voltage 1700 V
Max. current 26 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Saturation voltage 5.2 V
Switching loss b. switch off Eoff typ. 13.6 J
Switching loss at switch-on Eon typ. 6 J
Power dissipation 200 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
