IXGT10N170A | Littelfuse

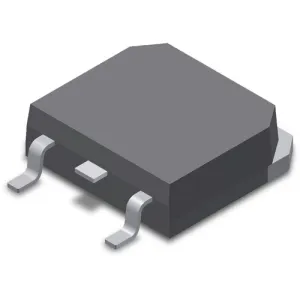

IGBT, 1700 V, 10 A, TO-268S, Littelfuse IXGT10N170A
Order No.: 74P0809
EAN: 4099891776749
MPN:
IXGT10N170A
Unit Price (€ / pc.)
11.781 € *
Available: 0 pcs.
Leadtime: 56 Weeks **
IGBT, IXGT10N170A, LITTELFUSE
A high voltage IGBT with high current handling capability, a rugged NPT structure, and advantages such as high power density, ease of mounting with one screw, and being suitable for surface mounting.
Features
- International standard package
- Very high frequency
- MOS gate turn-on - drive simplicity
- Molding epoxies meet UL 94 V-0 flammability classification
Applications
- Pulse circuits
- AC motor speed control
- DC servo and robot drives
- DC choppers
- Uninterruptible power supplies (UPS)
- Switch-mode and resonant-mode power supplies
Technical specifications
| Version | single | |
| Enclosure | TO-268S | |
| max. Voltage | 1700 V | |
| Max. current | 10 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Saturation voltage | 6 V | |
| Switching loss b. switch off Eoff typ. | 0.6 J | |
| Switching loss at switch-on Eon typ. | 1.2 J | |
| Power dissipation | 140 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
