IXGT6N170AHV | Littelfuse

Name: IGBT, 1700 V, 6 A, TO-268HV, Littelfuse IXGT6N170AHV
Brand: Littelfuse
SKU: 74P0821
Price: 9.70 EUR
Availability: OutOfStock

IGBT, 1700 V, 6 A, TO-268HV, Littelfuse IXGT6N170AHV

Order No.: 74P0821

EAN: 4099891776862

MPN:

IXGT6N170AHV

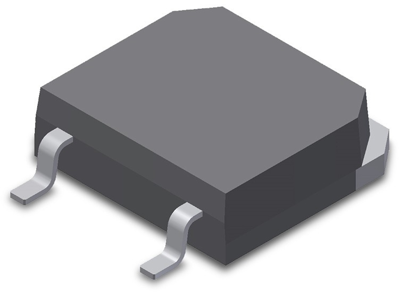

Image may differ

Key Specification:

Montage SMD

Gehäuse TO-268HV

Ausführung Einfach

max. Spannung 1700 V

max. Strom 6 A

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.6985 € *

Available: 0 pcs.

Leadtime: 47 Weeks **

Add to Cart

Total Price:

9.70 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

IGBT, IXGT6N170AHV, LITTELFUSE

A high voltage IGBT with high blocking voltage, and with advantages such as high power density, and easy mounting.

Applications

Power inverters
UPS
Motor drives
SMPS
PFC circuits
Welding machines

Technical specifications

	Ausführung	Einfach
	Gehäuse	TO-268HV
	max. Spannung	1700 V
	max. Strom	6 A
	max. Temperatur	150 °C
	min. Temperatur	-55 °C
	Montage	SMD
	Sättigungsspannung	7 V
	Schaltverlust b. Ausschalten Eoff typ.	0.25 J
	Schaltverlust b. Einschalten Eon typ.	0.62 J
	Verlustleistung VA (AC)	75 W

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	KR
Zolltarifnummer	85411000

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 15 variations
