IXGX55N120A3H1 | Littelfuse

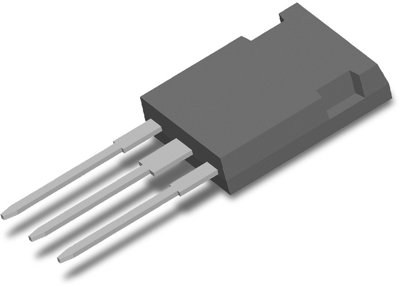

IGBT, 1200 V, 125 A, TO-247 PLUS, Littelfuse IXGX55N120A3H1
Order No.: 74P0827
EAN: 4099891776923
MPN:
IXGX55N120A3H1
Unit Price (€ / pc.)
20.2895 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
IGBT, IXGX55N120A3H1, LITTELFUSE
Ultra-low Vsat PT IGBT for up to 3 kHz switching with advantages such as high power density, and low gate drive requirements.
Features
- Optimized for low conduction losses
- Anti-parallel ultra fast diode
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
- Inrush current protection circuits
Technical specifications
| Enclosure | TO-247 PLUS | |
| max. Voltage | 1200 V | |
| Max. current | 125 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 2.3 V | |
| Switching loss b. switch off Eoff typ. | 29 J | |
| Switching loss at switch-on Eon typ. | 9.5 J | |
| Power dissipation | 480 W |
