IXXH30N60B3D1 | Littelfuse

IGBT, 600 V, 60 A, TO-247U, Littelfuse IXXH30N60B3D1

Order No.: 74P0836
EAN: 4099891777012
MPN:
IXXH30N60B3D1
Littelfuse
IXXH30N60B3D1 Littelfuse IGBTs

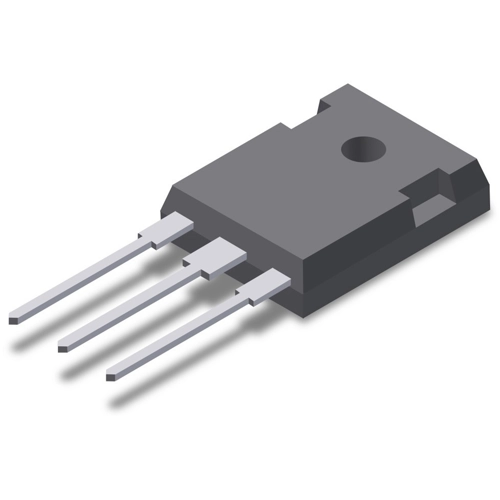

Image may differ
Unit Price (€ / pc.)
4.5101 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
Total Price:
4.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
4.5101 €

IGBT, IXXH30N60B3D1, Littelfuse

Extreme light punch through IGBT, optimized for 5-30 kHz switching with short circuit capability, and extremely rugged.

Features

  • Square RBSOA
  • Avalanche capability
  • International standard package
  • High power density
  • Extremely rugged

Applications

  • Power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
Technical specifications
Version single
Enclosure TO-247U
max. Voltage 600 V
Max. current 60 A
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Saturation voltage 1.86 V
Switching loss b. switch off Eoff typ. 0.7 J
Switching loss at switch-on Eon typ. 1.1 J
Power dissipation 270 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
