IXXH50N60B3D1 | Littelfuse

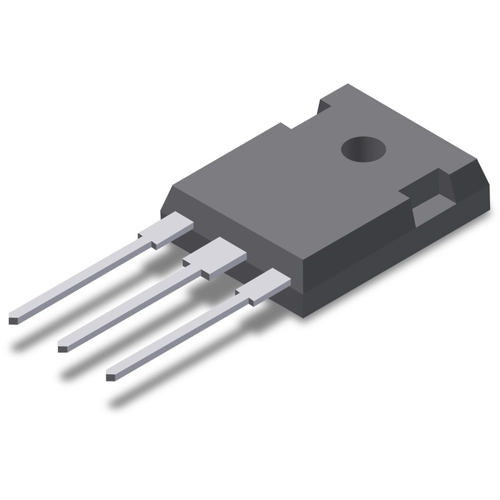

IGBT, 600 V, 120 A, TO-247U, Littelfuse IXXH50N60B3D1
Order No.: 74P0840
EAN: 4099891777050
MPN:
IXXH50N60B3D1
Unit Price (€ / pc.)
10.9004 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
IGBT, IXXH50N60B3D1, Littelfuse
Extreme light punch through IGBT, optimized for 5-30 kHz switching with short circuit capability, and extremely rugged.
Features
- Square RBSOA
- Avalanche capability
- Anti-parallel ultra fast diode
- High power density
- Extremely rugged
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
Technical specifications
| Ausführung | Einfach | |
| Gehäuse | TO-247U | |
| max. Spannung | 600 V | |
| max. Strom | 120 A | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 1.2 J | |
| Schaltverlust b. Einschalten Eon typ. | 1.4 J | |
| Verlustleistung VA (AC) | 600 W |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
