IXXH75N60C3D1 | Littelfuse

IGBT, 600 V, 150 A, TO-247U, Littelfuse IXXH75N60C3D1

Order No.: 74P0846
EAN: 4099891777111
MPN:
IXXH75N60C3D1
Littelfuse
IXXH75N60C3D1 Littelfuse IGBTs

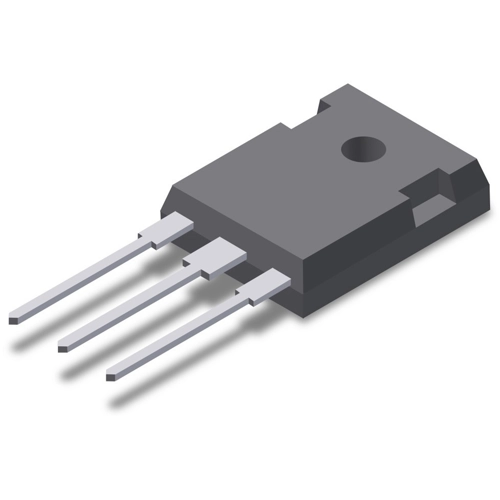

Image may differ
Unit Price (€ / pc.)
7.6398 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
Total Price:
7.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
7.6398 €

IGBT, IXXH75N60C3D1, Littelfuse

Extreme light punch through IGBT, optimized for 20-60 kHz switching with short circuit capability and high current handling capability.

Features

  • Square RBSOA
  • Avalanche capability
  • Anti-parallel ultra fast diode
  • High power density
  • Extremely rugged

Applications

  • Power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
Technical specifications
Enclosure TO-247U
max. Voltage 600 V
Max. current 150 A
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Saturation voltage 2.3 V
Switching loss b. switch off Eoff typ. 1.07 J
Switching loss at switch-on Eon typ. 2.5 J
Power dissipation 750 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
