IXXK100N60B3H1 | Littelfuse

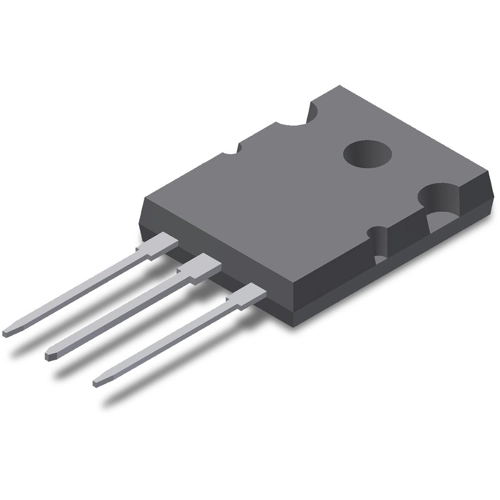

IGBT, 600 V, 200 A, TO-264U, Littelfuse IXXK100N60B3H1
Order No.: 74P0847
EAN: 4099891777128
MPN:
IXXK100N60B3H1
Unit Price (€ / pc.)
19.5517 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
IGBT, IXXK100N60B3H1, Littelfuse
Extreme light punch through IGBT, optimized for 10-30 kHz switching with short circuit capability and high current handling capability.
Features
- Square RBSOA
- Avalanche rated
- Anti-parallel ultra fast diode
- High power density
Applications
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
Technical specifications
| Gehäuse | TO-264U | |
| max. Spannung | 600 V | |
| max. Strom | 200 A | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 2.8 J | |
| Schaltverlust b. Einschalten Eon typ. | 2.3 J | |
| Verlustleistung VA (AC) | 695 W |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
