IXYA20N65C3 | Littelfuse

IGBT, 650 V, 50 A, TO-263, Littelfuse IXYA20N65C3

Order No.: 74P0867
EAN: 4099891777326
MPN:
IXYA20N65C3
Littelfuse
IXYA20N65C3 Littelfuse IGBTs

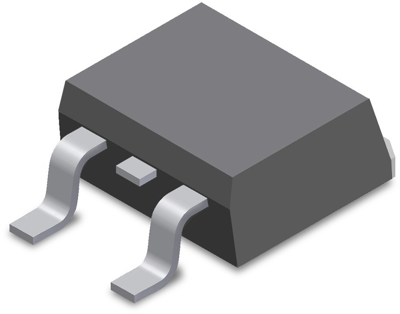

Image may differ
Unit Price (€ / pc.)
2.261 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
Total Price:
2.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
2.261 €

IGBT, IXYA20N65C3, Littelfuse

Extreme light punch through IGBT, optimized for 20-60 kHz switching with high power density, is extremely rugged, and has a low gate drive requirement.

Features

  • Square RBSOA
  • Short circuit capability
  • Avalanche rated
  • International standard package

Applications

  • Power inverters
  • High frequency power inverters
  • UPS
  • Motor drives
  • SMPS
  • PFC circuits
  • Battery chargers
  • Welding machines
  • Lamp ballasts
Technical specifications
Version single
Enclosure TO-263
max. Voltage 650 V
Max. current 50 A
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly SMD
Saturation voltage 2.5 V
Switching loss b. switch off Eoff typ. 0.4 J
Switching loss at switch-on Eon typ. 0.7 J
Power dissipation 230 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
