IXYH100N65A3 | Littelfuse

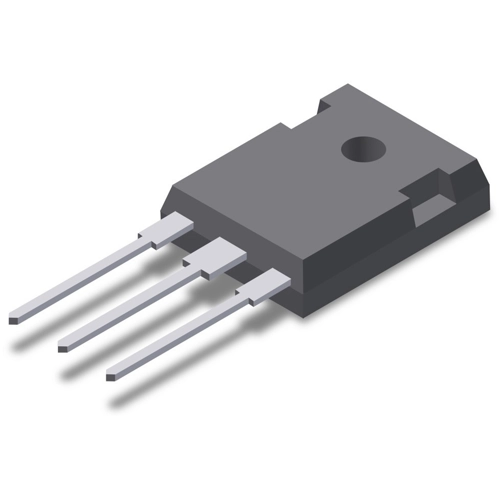

IGBT, 650 V, 240 A, TO-247, Littelfuse IXYH100N65A3
Order No.: 74P0871
EAN: 4099891777364
MPN:
IXYH100N65A3
Unit Price (€ / pc.)
9.4248 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
IGBT, IXYH100N65A3, Littelfuse
Low-Vsat IGBT, optimized for up to 5 kHz switching with high power density and low gate drive requirements.
Features
- Square RBSOA
- Short circuit capability
- Avalanche rated
- High current handling capability
Applications
- Low frequency power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- AC switches
Technical specifications
| Version | single | |
| Enclosure | TO-247 | |
| max. Voltage | 650 V | |
| Max. current | 240 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 1.8 V | |
| Switching loss b. switch off Eoff typ. | 3.7 J | |
| Switching loss at switch-on Eon typ. | 4 J | |
| Power dissipation | 470 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
