IXYH30N65C3 | Littelfuse

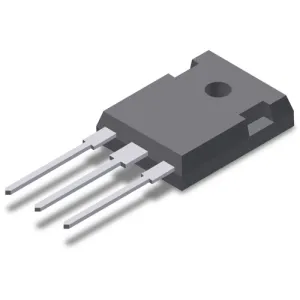

IGBT, 650 V, 60 A, TO-247, Littelfuse IXYH30N65C3
Order No.: 74P0883
EAN: 4099891777487
MPN:
IXYH30N65C3
Unit Price (€ / pc.)
3.5462 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
IGBT, IXYH30N65C3, Littelfuse
Extreme light punch through IGBT, optimized for 20-60 kHz switching with high power density, is extremely rugged, and has a low gate drive requirement.
Features
- Square RBSOA
- Short circuit capability
- Avalanche rated
- International standard package
Applications
- Power inverters
- High frequency power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Version | single | |
| Enclosure | TO-247 | |
| max. Voltage | 650 V | |
| Max. current | 60 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 2.7 V | |
| Switching loss b. switch off Eoff typ. | 0.41 J | |
| Switching loss at switch-on Eon typ. | 1.5 J | |
| Power dissipation | 270 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
