IXYK120N120B3 | Littelfuse

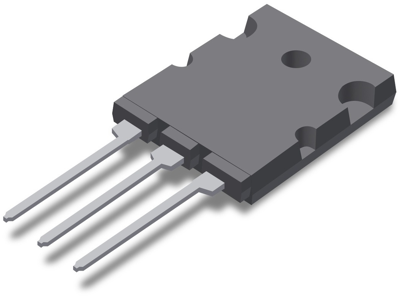

IGBT, 1200 V, 320 A, TO-264K, Littelfuse IXYK120N120B3
Order No.: 74P0906
EAN: 4099891777715
MPN:
IXYK120N120B3
Unit Price (€ / pc.)
32.7012 € *
Available: 0 pcs.
Leadtime: 52 Weeks **
IGBT, IXYK120N120B3, Littelfuse
High-speed IGBT for 10-30 kHz switching with high power density and low gate drive requirements.
Features
- Square RBSOA
- Positive thermal coefficient of Vce(sat)
- Avalanche rated
- High current handling capability
- International standard package
Applications
- High frequency power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Ausführung | Einfach | |
| Gehäuse | TO-264K | |
| max. Spannung | 1200 V | |
| max. Strom | 320 A | |
| max. Temperatur | 175 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Sättigungsspannung | 2.2 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 27.9 J | |
| Schaltverlust b. Einschalten Eon typ. | 14.7 J | |
| Verlustleistung VA (AC) | 1500 W |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
