IXYP50N65C3 | Littelfuse

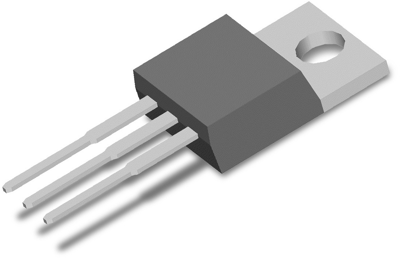

IGBT, 650 V, 132 A, TO-220, Littelfuse IXYP50N65C3
Order No.: 74P0936
EAN: 4099891778019
MPN:
IXYP50N65C3
Unit Price (€ / pc.)
4.879 € *
Available: 0 pcs.
Leadtime: 98 Weeks **
IGBT, IXYP50N65C3, Littelfuse
Extreme light punch through IGBT, optimized for 20-60 kHz switching with high power density, is extremely rugged, and has a low gate drive requirement.
Features
- Square RBSOA
- Avalanche rated
- Short circuit capability
- International standard package
Applications
- High frequency power inverters
- Power inverters
- UPS
- Motor drives
- SMPS
- PFC circuits
- Battery chargers
- Welding machines
- Lamp ballasts
Technical specifications
| Version | single | |
| Enclosure | TO-220 | |
| max. Voltage | 650 V | |
| Max. current | 132 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | 2.1 V | |
| Switching loss b. switch off Eoff typ. | 0.7 J | |
| Switching loss at switch-on Eon typ. | 1.6 J | |
| Power dissipation | 600 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
