MIXA150R1200VA | Littelfuse

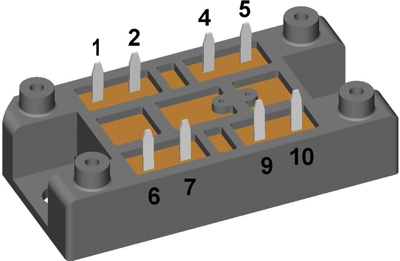

Chopper IGBT switch, 1200 V, 175 A, V1-A-Pack, Littelfuse MIXA150R1200VA
Order No.: 74P0957
EAN: 4099891778224
MPN:
MIXA150R1200VA
Unit Price (€ / pc.)
33.8793 € *
Available: 0 pcs.
Leadtime: 62 Weeks **
IGBT module, MIXA150R1200VA, LITTELFUSE
XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, square RBSOA 3x IC, and low EMI.
Features
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
- Fast and soft reverse recovery
- Low operating forward voltage
- Industry standard outline
- RoHS compliant
- Soldering pins for PCB mounting
- Reduced weight
- Advanced power cycling
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supplies (UPS)
- Air-conditioning systems
- Welding equipment
- Switch-mode and resonant-mode power supplies
- Inductive heating, cookers
- Pumps, fans
Technical specifications
| Ausführung | Einfach | |
| Gehäuse | V1-A-Pack | |
| max. Spannung | 1200 V | |
| max. Strom | 175 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | Chassisbefestigung | |
| Sättigungsspannung | 1.7 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 17 J | |
| Schaltverlust b. Einschalten Eon typ. | 21.5 J | |
| Verlustleistung VA (AC) | 695 W |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
